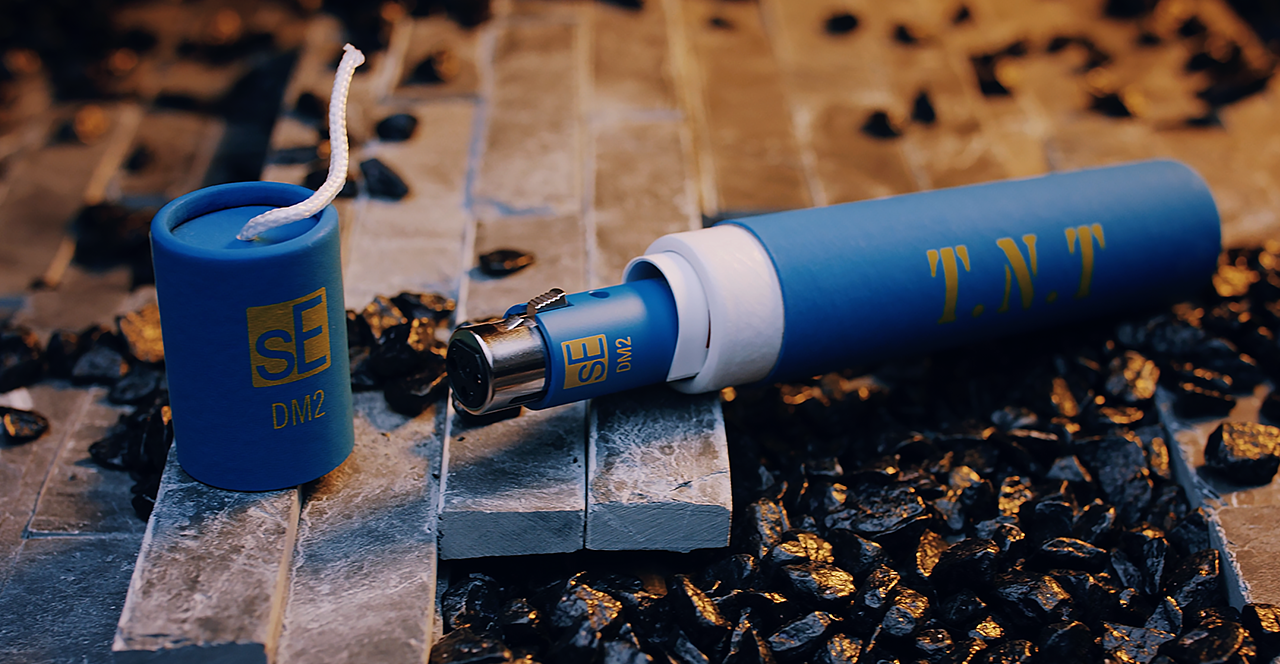

DM2 TNT

Explosive level for all your passive mics

The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.

DM2 TNT

EXPLOSIVE LEVEL FOR ALL YOUR PASSIVE MICS

The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.

Recommended Use

Dynamic & passive ribbon microphones

Highlights
Switchable, clean and consistent gain from moderate +15dB to explosive +30dB
Eight load settings ranging from 50 ohms to stunningly high 10 mega ohms to precisely match any mic
Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
All-metal housing and premium finish ensures the DM2 can handle demanding on-tour or recording/broadcast studio lifestyles
Gold plated XLR connector for loss-free reliable signal connection













Inside the DM2 TNT

  • DM2-Image-Map-Side-aspect-ratio-545-390

    SIGNIFICANTLY IMPROVED LEVEL TO YOUR MIC PREAMP

    The DM2 provides switchable +15dB or +30dB of consistent gain regardless of the connected load, thanks to its dedicated buffer amplifier providing you more flexibility for your particular applications.

  • DM2-Image-Map-Side-aspect-ratio-545-390

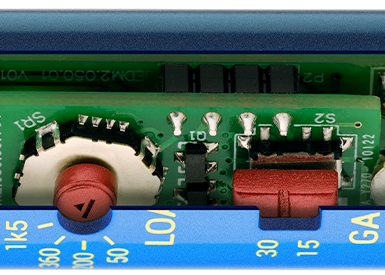

    MATCH THE IMPEDANCE OF YOUR FAVORITE MIC

    From an unconventionally low 50 ohms to stunningly high 10 mega ohms to match your preamp with any mic accurately to ruthlessly boost the signal independent from load impedance or cable length.

  • DM2-Image-Map-Side-aspect-ratio-545-390

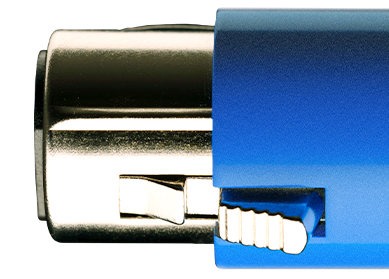

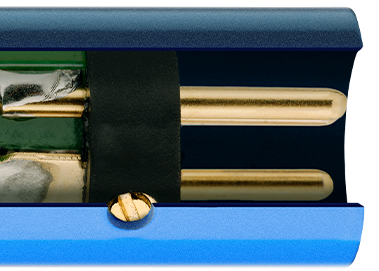

    DEDICATED OUTPUT BUFFER AMPLIFIER & RELIABLE SIGNAL CONNECTION

    The output impedance is also the lowest in its class, allowing long cable runs while reducing susceptibility to RF interference, buzz and hum with a gold-plated XLR connector for loss-free signal connection.

  • DM2-Image-Map-3-aspect-ratio-545-390

    CLASS-A DESIGN & LOWEST NOISE IN ITS CLASS

    Class-A design and specially-selected high-grade FETs enable vastly lower output impedance and the lowest noise in its class providing the gain needed to for a clean sound and much less noise.

  • DM2-Image-Map-4-aspect-ratio-545-390

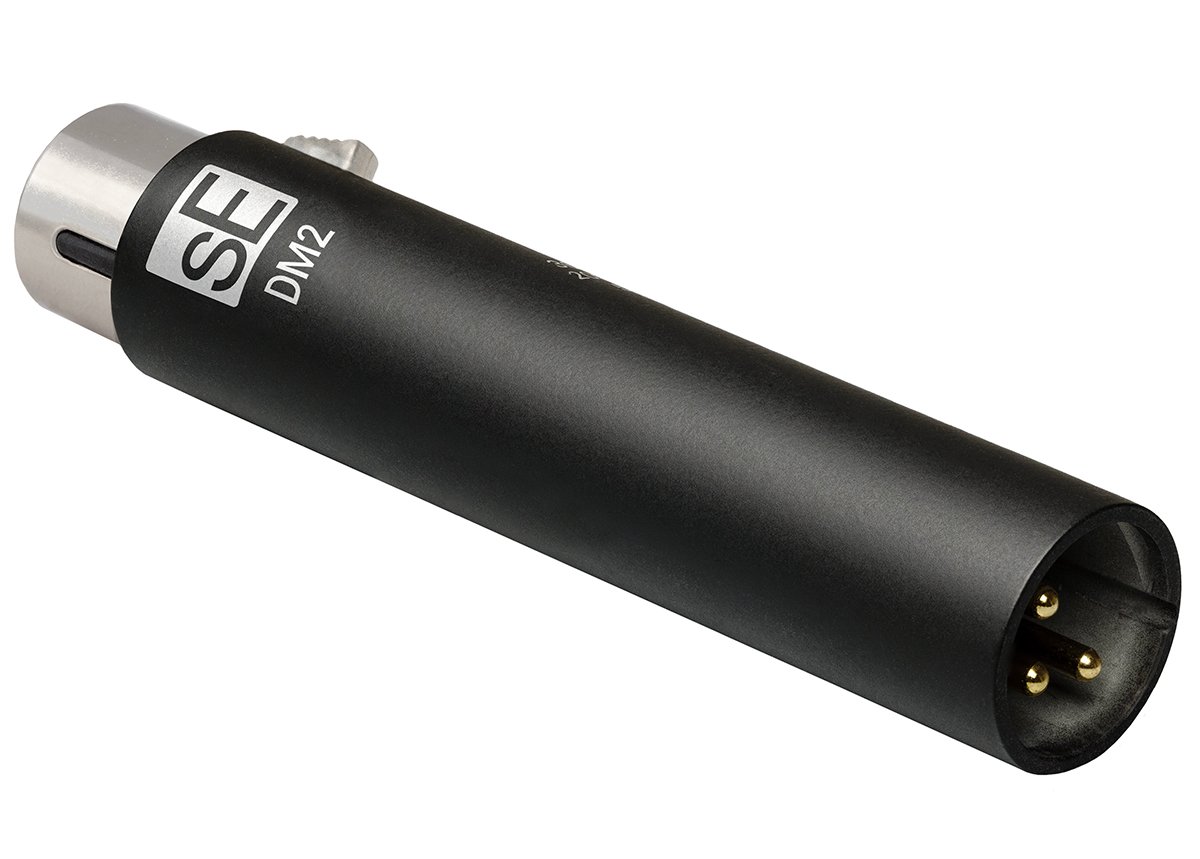

    SLIM, RUGGED ALL-METAL HOUSING & PREMIUM FINISH

    Reliable operation in demanding environments & on-stage applications. Robust construction with high-quality manufacturing standards.

Specs

Power
Electrical Impedance 135 Ohms
Recommended Load Impedance >1K Ohms
Connectivity 3-pin male/female XLR connector
Powering 48V Phantom Power (P48 according to IEC 61938)
Sound
Frequency range 10 Hz - 120 kHz (-0.3 dB)
Gain 15 dB / 30 dB
Current consumption 3.1 mA
Max output level (0.5% THD) 9.5 dBV (3.0 V)
Output noise level 1 μV @ 15 dB / 6.6 μV @ 30 dB
Dimensions
Preamp diameter 19 mm (0.75 in.)
Preamp length 96 mm (3.78 in.)
Preamp weight 80 g (2.82 oz.)
What's in the box
DM2
sE Logo Sticker
User manual with warranty card

Downloads

Manual

“sE preamps are like something from a Harry Potter world: a magic stick that adds or subtracts nothing to/from the original microphone and allows you to place it at a comfortable distance.”

— Visuals Producer
sE artists

Artists putting the DM2 on the map from studios to stages worldwide

Q&A

What are the system requirements?

– Input: passive microphone (ribbon/dynamic)
– output: preamp/mixer/audio interface providing 48V phantom power

LIMITATIONS – not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)

What kind of microphones does the DM2 work with?

The DM2 is intended for use only with passive microphones – i.e. microphones that do not require phantom power for operation, like passive dynamic and passive ribbon microphones. It will not work with condenser microphones or active ribbon mics.

My DM2 isn't doing anything / I don't hear any signal / all I hear is a buzz or hum.

Please ensure the DM2 is connected securely between your microphone and your mic preamp, and make sure that +48V phantom power is turned ON on your mic preamp. If you are still experiencing problems, please contact your local dealer, or fill out our Support Request form and we’ll help!
