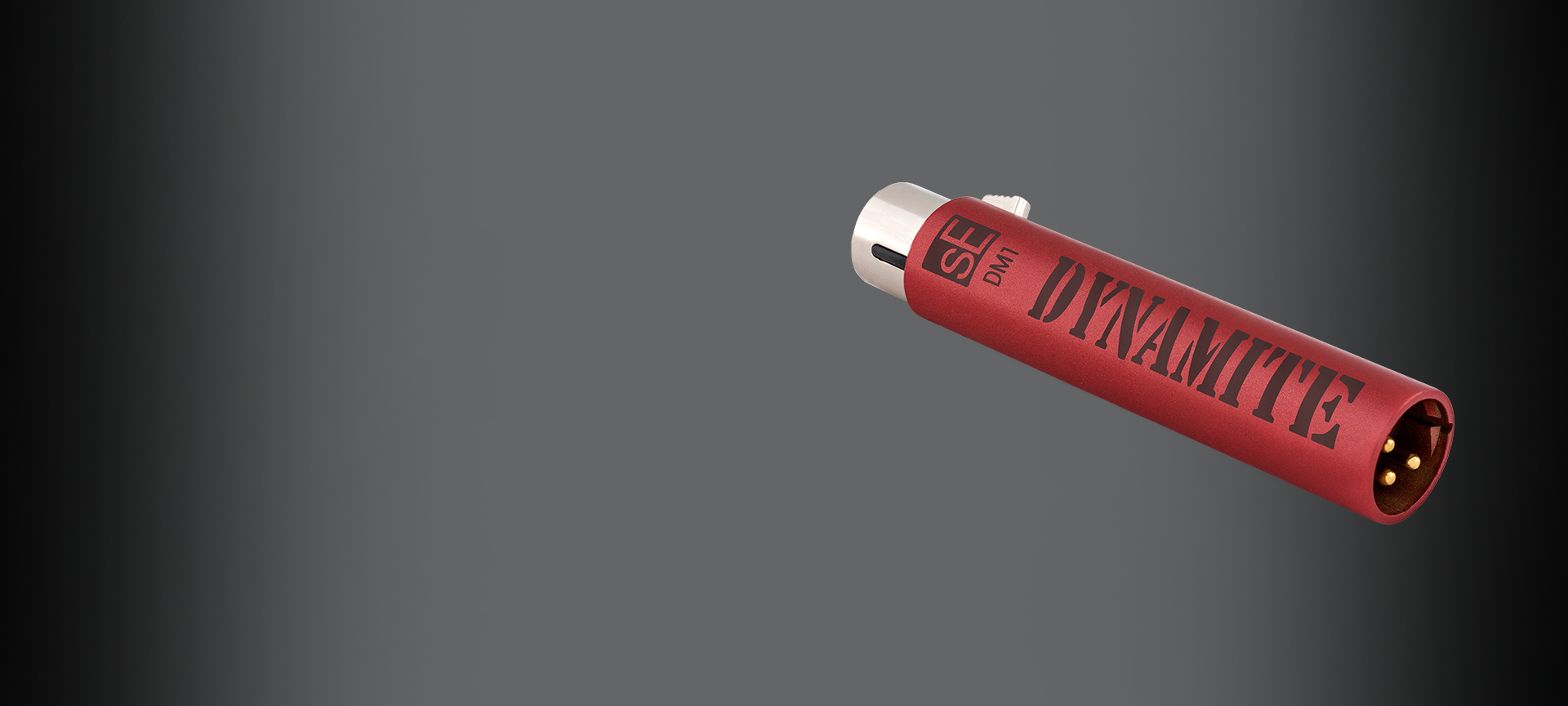

DM1  DYNAMITE

Explosive level for all your passive mics

An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.

DM1  DYNAMITE

EXPLOSIVE LEVEL FOR ALL YOUR PASSIVE MICS

An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.

Recommended Use

Dynamic & passive ribbon microphones

Highlights
Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
Always a consistent +28dB regardless of the connected load to enable mics with a lower output
Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones
All-metal housing and premium finish ensures the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
Gold plated XLR connector for loss-free reliable signal connection
Perfect for podcasting, recording, or live sound

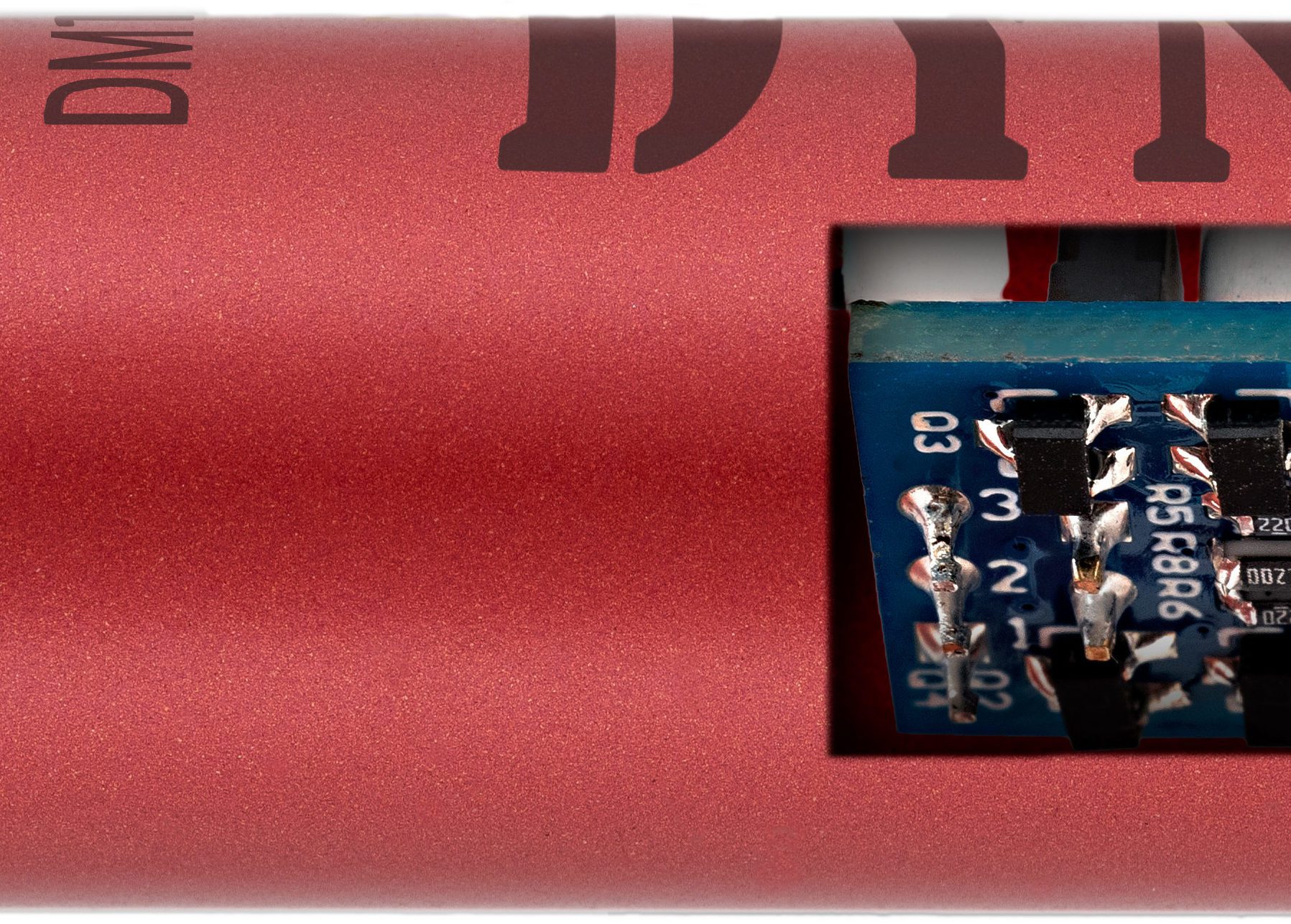

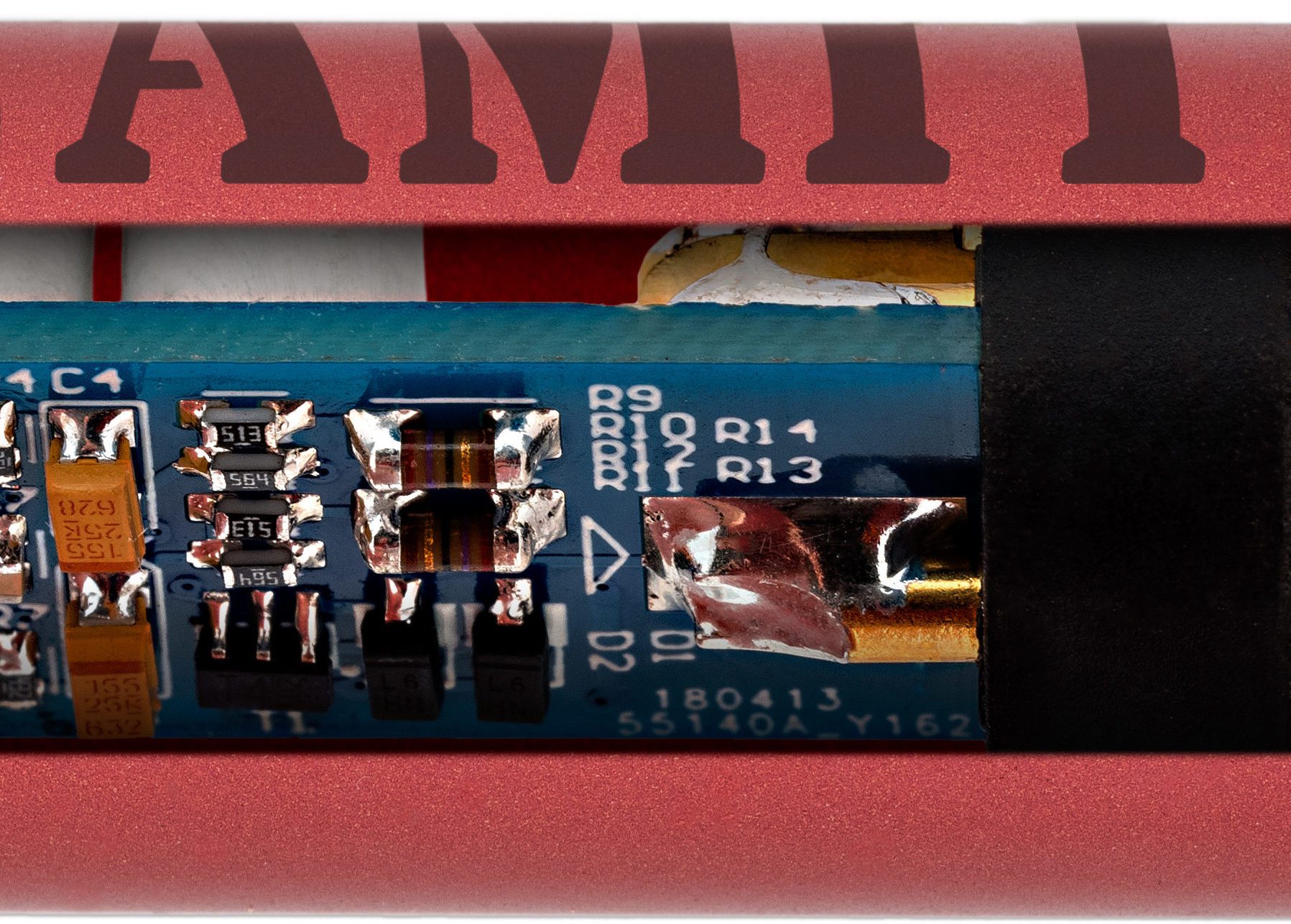

Inside the DM1  DYNAMITE

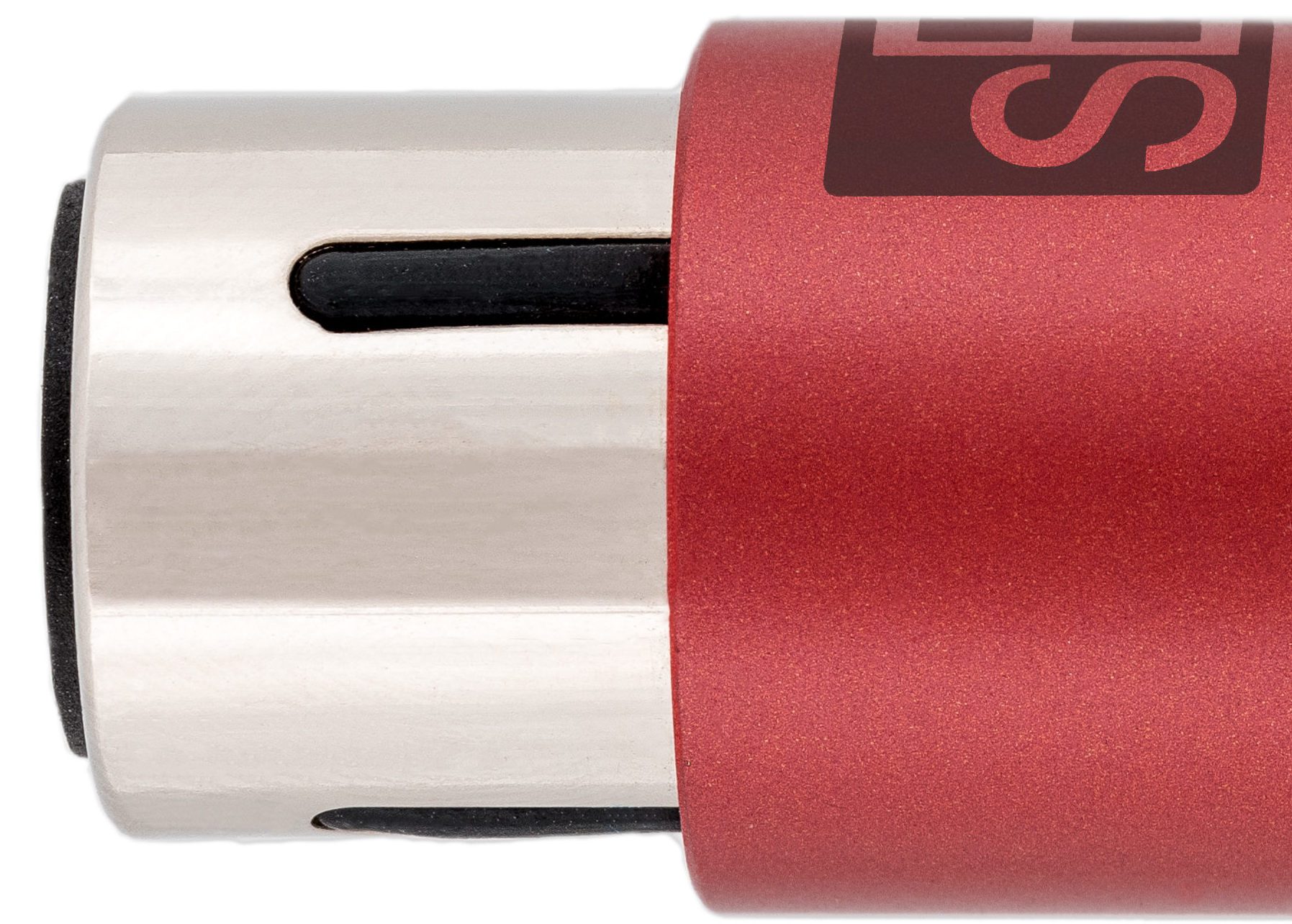

  • sE-DM1-Cut-6313-Edit2-e1638230897285-aspect-ratio-545-390

    SIGNIFICANTLY IMPROVED LEVEL TO YOUR MIC PREAMP

    The DM1 provides +28dB of consistent gain regardless of the connected load, thanks to its dedicated buffer amplifier.

  • sE-DM1-Cut-6313-Edit2-e1638230897285-aspect-ratio-545-390

    CLASS-A DESIGN & LOWEST NOISE IN ITS CLASS

    Class-A design and specially-selected high-grade FETs enable vastly lower output impedance and the lowest noise in its class.

  • sE-DM1-Cut-6313-Edit2-e1638230897285-aspect-ratio-545-390

    DEDICATED OUTPUT BUFFER AMPLIFIER

    The output impedance is also the lowest in its class, allowing long cable runs while reducing susceptibility to RF interference, buzz and hum.

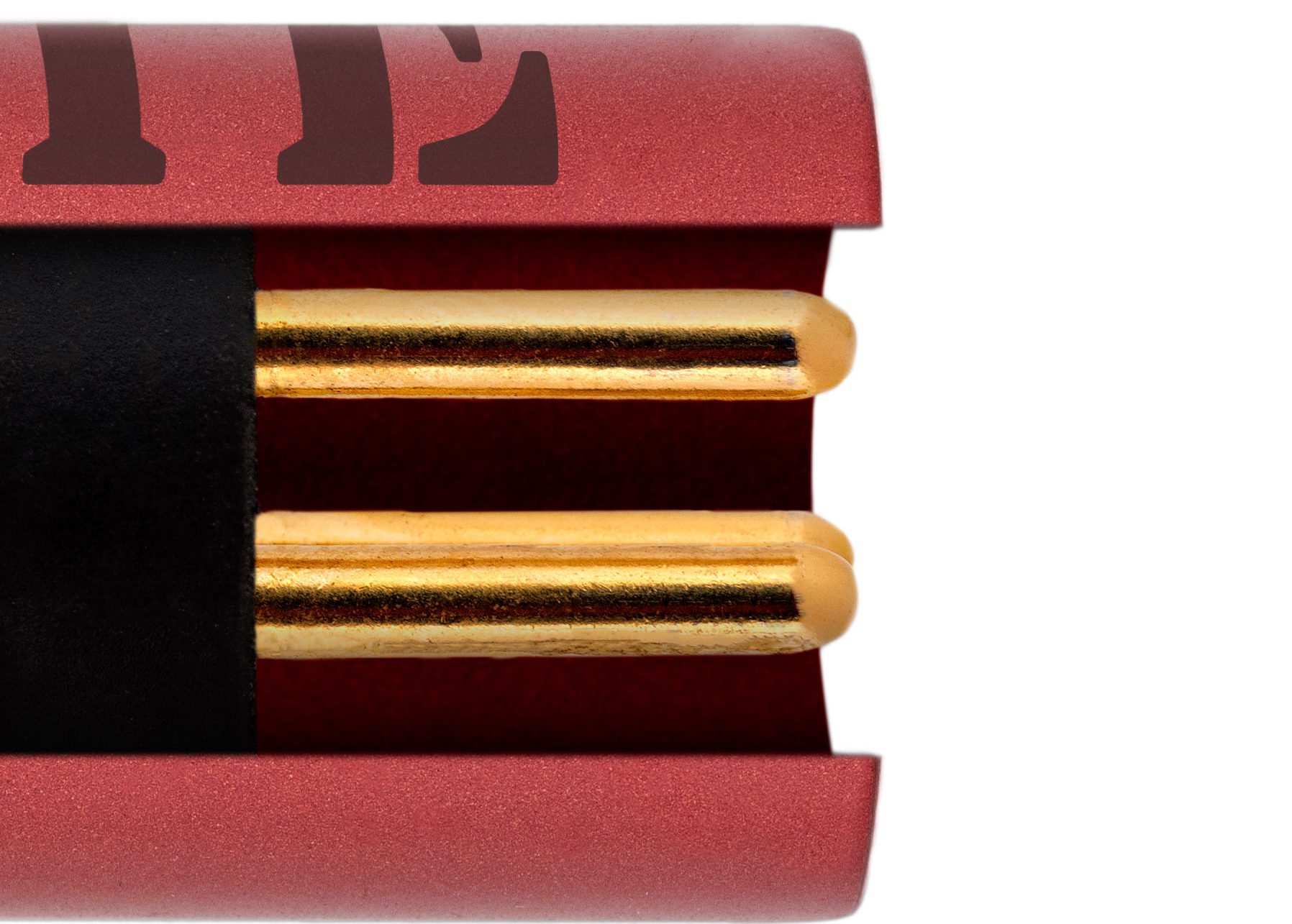

  • sE-DM1-Cut-6313-Edit2-e1638230897285-aspect-ratio-545-390

    LOSS-FREE & RELIABLE SIGNAL CONNECTION

    Gold-plated XLR connectors ensure loss-free and reliable signal connection for your favorite dynamic and passive ribbon microphones.

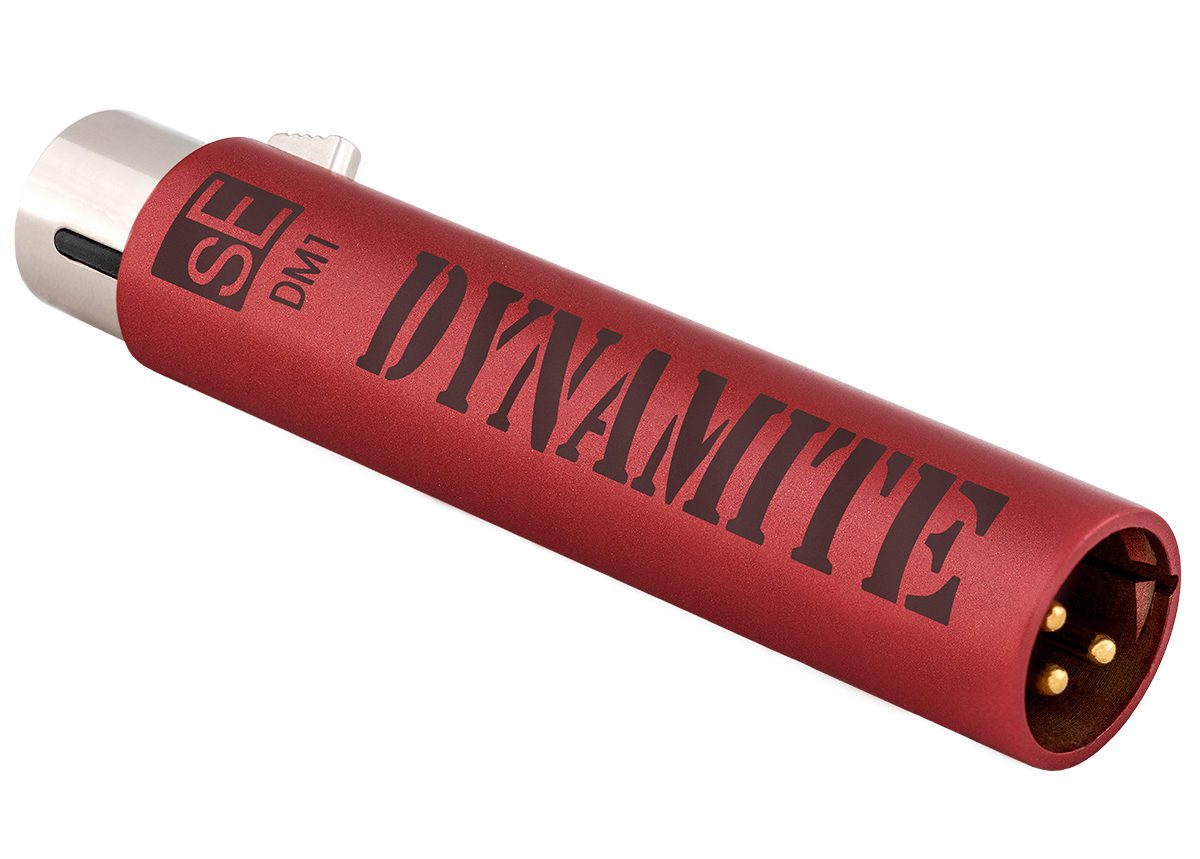

  • DM1-Glamour-aspect-ratio-545-390

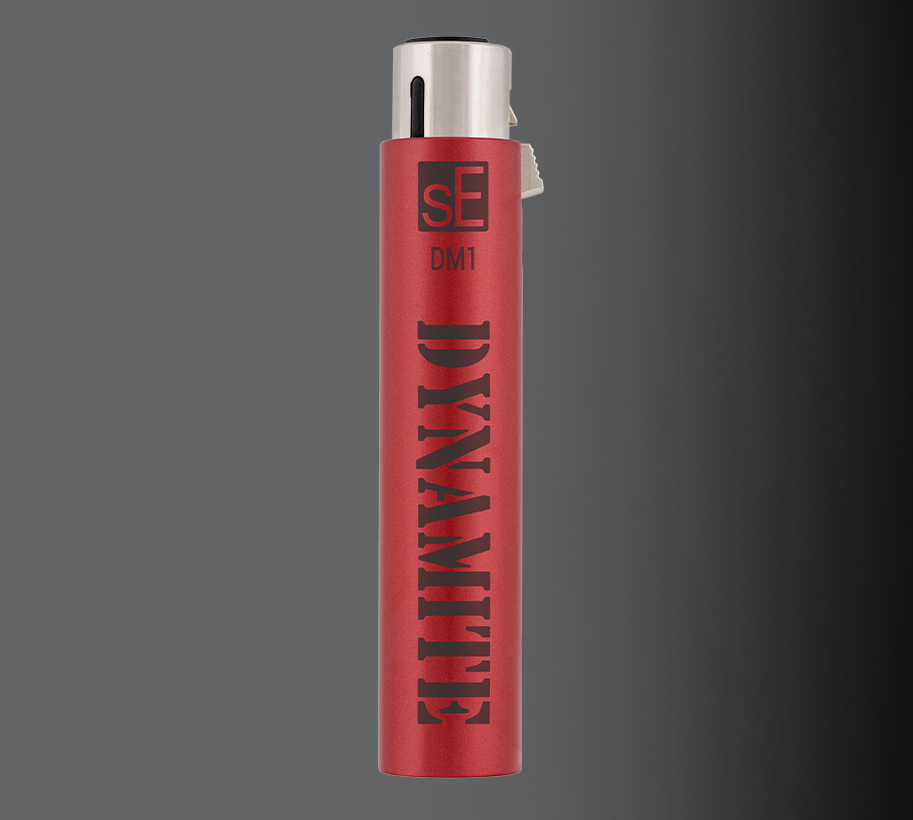

    SLIM, RUGGED ALL-METAL HOUSING & PREMIUM FINISH

    Reliable operation in demanding environments & on-stage applications. Robust construction with high-quality manufacturing standards.

Specs

Power
Electrical Impedance 135 Ohms
Recommended Load Impedance >1K Ohms
Connectivity 3-pin male/female XLR connector
Powering 48V Phantom Power (P48 according to IEC 61938)
Sound
Frequency range 10 Hz - 120 kHz (-0.3 dB)
Gain 28 dB
Current consumption 3.0 mA
Max output level (0.5% THD) 8.3 dBV (2.6 V)
Output noise level 9 µV (a-weighted)
Dimensions
Preamp diameter 19 mm (0.75 in.)
Preamp length 96 mm (3.78 in.)
Preamp weight 96 mm (3.78 in.)
What's in the box
DM1
sE Logo Sticker
User manual with warranty card

Downloads

Manual

“The DM1  is like something from a Harry Potter world: a magic stick that adds or subtracts nothing to/from the original microphone and allows you to place it at a comfortable distance.”

— Visuals Producer
sE artists

Artists putting the DM1 on the map from studios to stages worldwide

Q&A

What are the system requirements?

– Input: passive microphone (ribbon/dynamic)
– output: preamp/mixer/audio interface providing 48V phantom power

LIMITATIONS – not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)

What kind of microphones does the DM1 work with?

The DM1 is intended for use only with passive microphones – i.e. microphones that do not require phantom power for operation, like passive dynamic and passive ribbon microphones. It will not work with condenser microphones or active ribbon mics.

My DM1 isn't doing anything / I don't hear any signal / all I hear is a buzz or hum.

Please ensure the DM1 is connected securely between your microphone and your mic preamp, and make sure that +48V phantom power is turned ON on your mic preamp. If you are still experiencing problems, please contact your local dealer, or fill out our Support Request form and we’ll help!
